Q2 3D Model Update

More
14 years 8 months ago #805 by NateD2
Q2 3D Model Update was created by NateD2

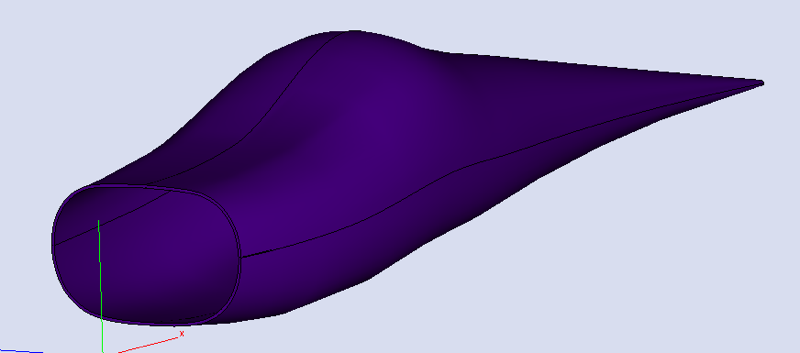

For anyone interested. I have updated the fuselage shape on the 3D model. I also have created the foam core shape for the fuselage.

In order to do this I had to shift around a few parts of the model. I had to move the bulkhead aft of the canopy upward by an inch and scaled its height by a factor of 1:1 this filled out the curvature shown in the plans section to look more appropriate. I also moved the tail end cap down by 1"

Can anyone offer any feedback on this model?

Please Log in or Create an account to join the conversation.

More
14 years 8 months ago #806 by NateD2
Replied by NateD2 on topic Re:Q2 3D Model Update
Pictures of the updated side view.
Attachments:

Please Log in or Create an account to join the conversation.

More
14 years 8 months ago #807 by NateD2
Replied by NateD2 on topic Re:Q2 3D Model Update

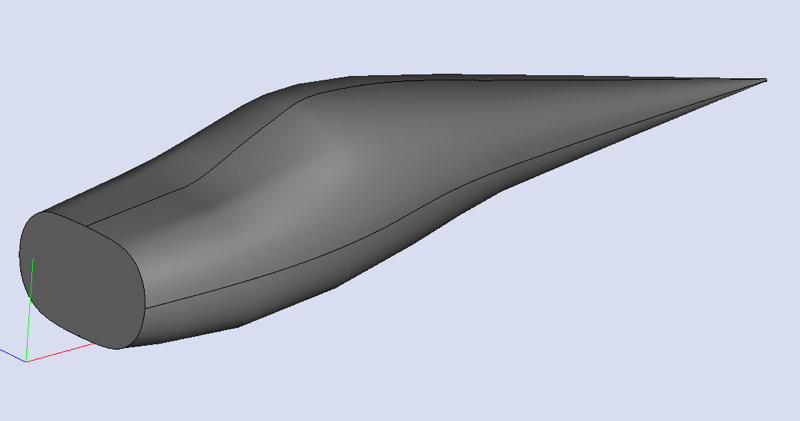

Here is the initial model of the foam core that was probably supplied as a kit component. I am working to revise it further.
Attachments:

Please Log in or Create an account to join the conversation.

More
14 years 8 months ago #808 by NateD2
Replied by NateD2 on topic Re:Q2 3D Model Update
Ok so here is the near final exterior model of the Q-200. I have matched it to the plans and the plan view provided in the assembly plans manual. The entire fuselage should now be accurate to 1/32" if not better. If anyone has any feedback please let me know.
Attachments:

Please Log in or Create an account to join the conversation.

More
14 years 8 months ago #809 by NateD2
Replied by NateD2 on topic Re:Q2 3D Model Update
And another view.
Attachments:

Please Log in or Create an account to join the conversation.

More
14 years 8 months ago #818 by NateD2
Replied by NateD2 on topic Re:Q2 3D Model Update

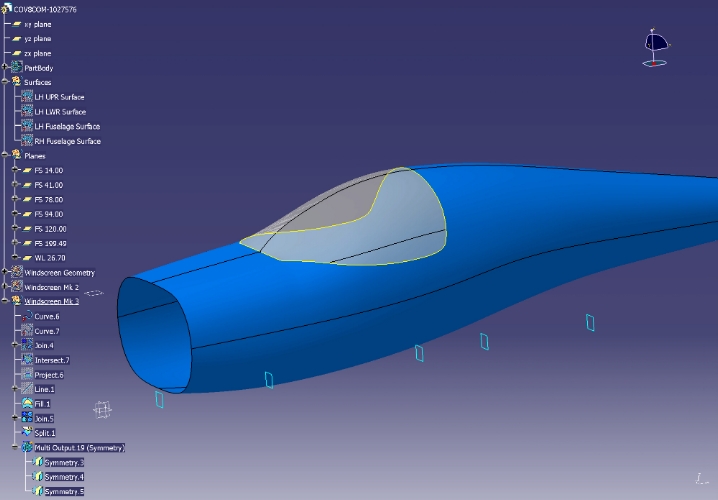

Here is an update of the 3D model. I have fixed yet more surface and geometry errors. The windshield has also been added however is not finalized.

I am in the process of tracing the airfoils and tooling for attaching them to the fuselage.

Hopefully by next week the wings will be on with control surface.
Attachments:
The following user(s) said Thank You: CharlieN
