Continental O-200 Dimensions

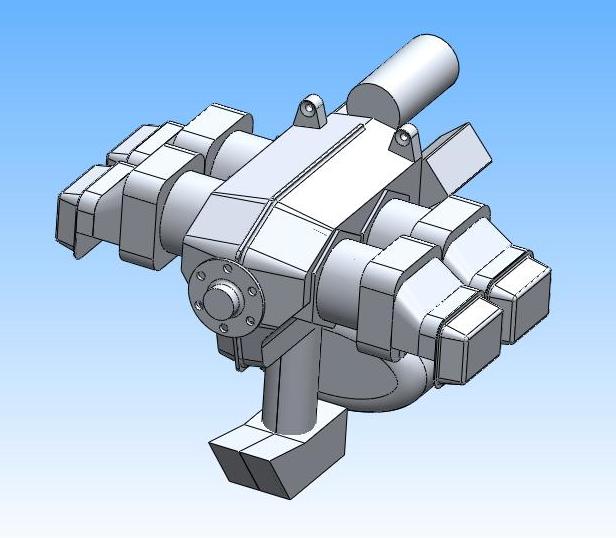

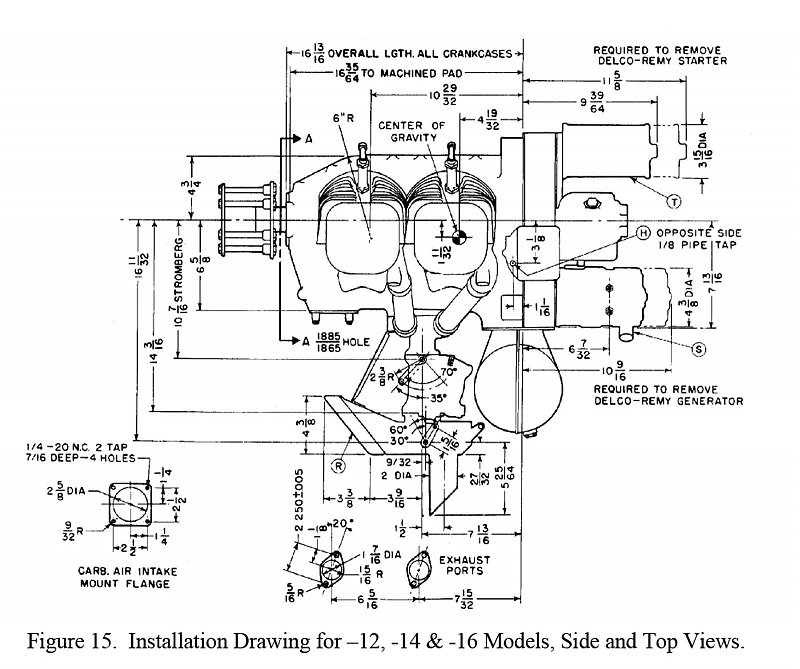

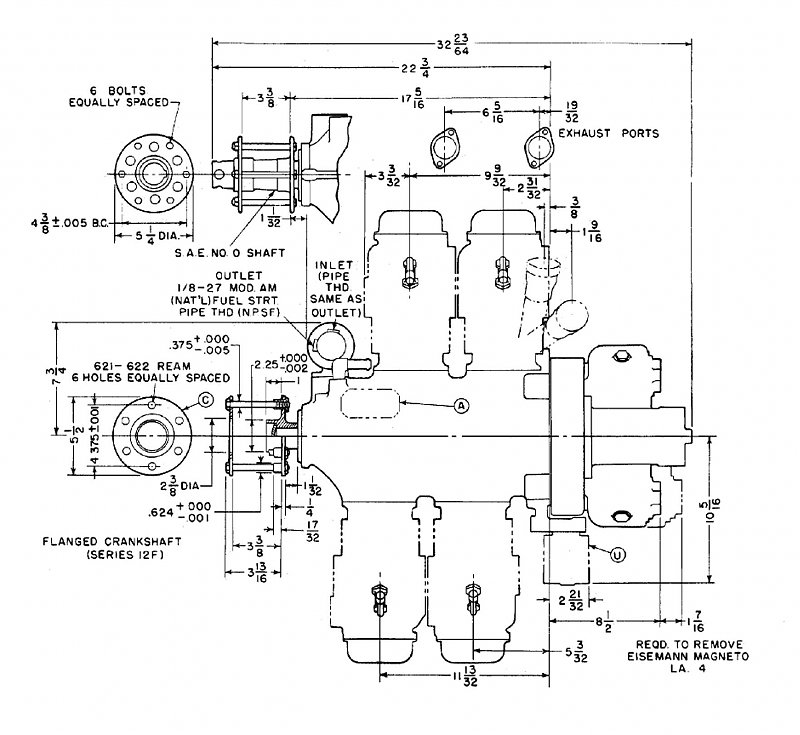

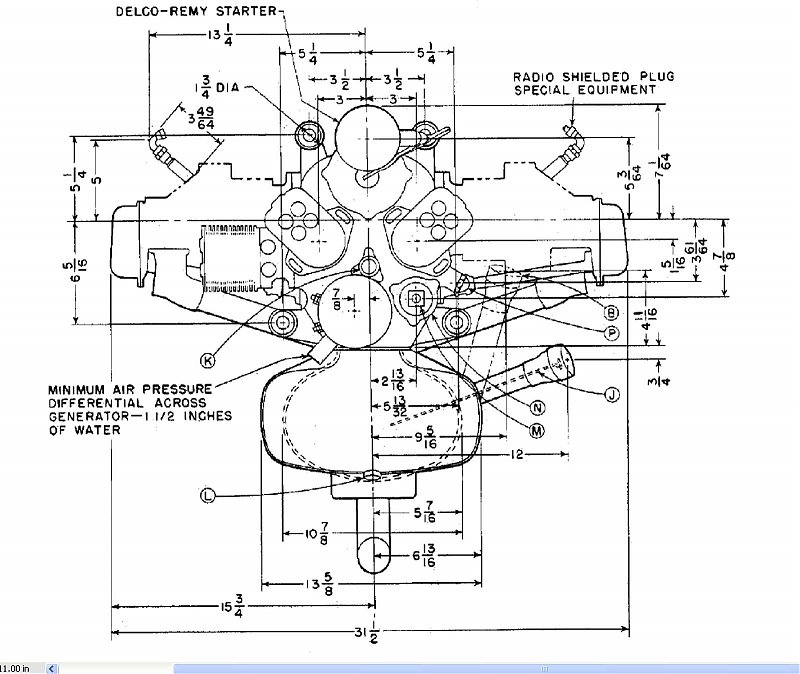

There was a recent post on the Q-list about the dimensions of the Continental O-200.  Paul came up with a great link which shows several views of the engine with appropriate dimensions.

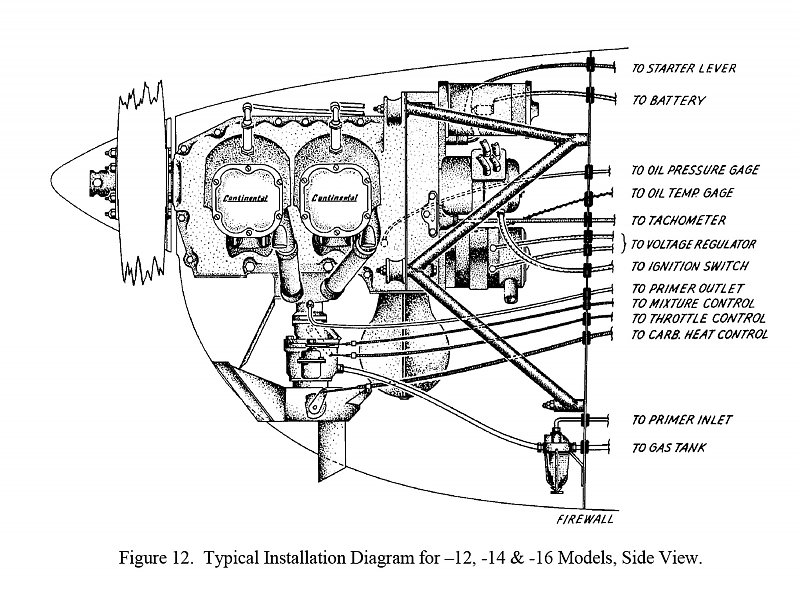

I am posting the pictures below just in case that link goes dead at some point.  This should be useful to anyone building a Q-200 with the standard Continental O-200 engine.
