I always admired the design of the Dragonfly but the idea of the tail dragger seemed a bit intimidating to me especially since I trained in a Cessna 150 tricycle configuration. I also liked the idea of seeing straight down the runway.
For a long time I dismissed the idea of a tricycle gear on the Dragonfly as I thought that it would be a lot of extra work and expense changing over to a the MK III configuration, but I went ahead and took the leap.
I tend not to be trusting when it comes to making changes like these and, quite honestly, it seemed to me that the framing available was quite inadequate. However, after talking to Richard Kaczmarek, I took some of his ideas and incorporated a little of my own and came up with this plywood tray idea for strength. Here are some pictures of the tray.

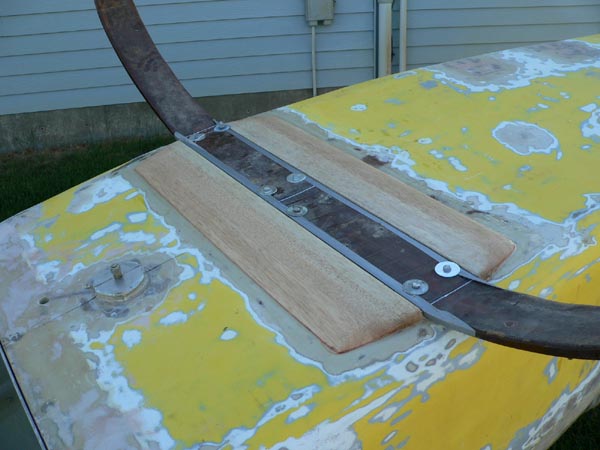

It is made of 1/2" birch plywood and covered with 3 layers of fiberglass. The floor below the tray I layed up with 4 layers of fiberglass, then I set the tray in and covered it with 1 layer of fiberglass. The bottom side I placed on each side of the gear 3/4" Balsa wood and sanded it to shape then covered it with 4 layers of fiberglass.

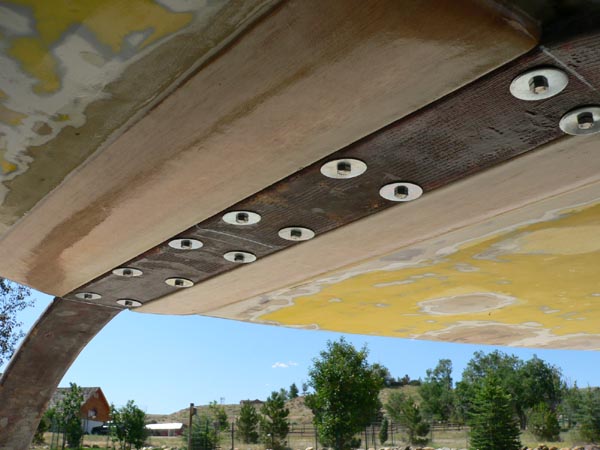

I drilled 12 holes through the bottom and inserted 12 5/16 stainless steel bolts with large fender washers. After doing all this it seemed very solid as I bounced it around and stood on the gear leg and jumped up and down on it.
The gear seemed very strong but it may have just it bit too much spring in it as it seem to flatten out slightly, but may not be a problem.
