ELECTRICAL SYSTEM  INTRODUCTION

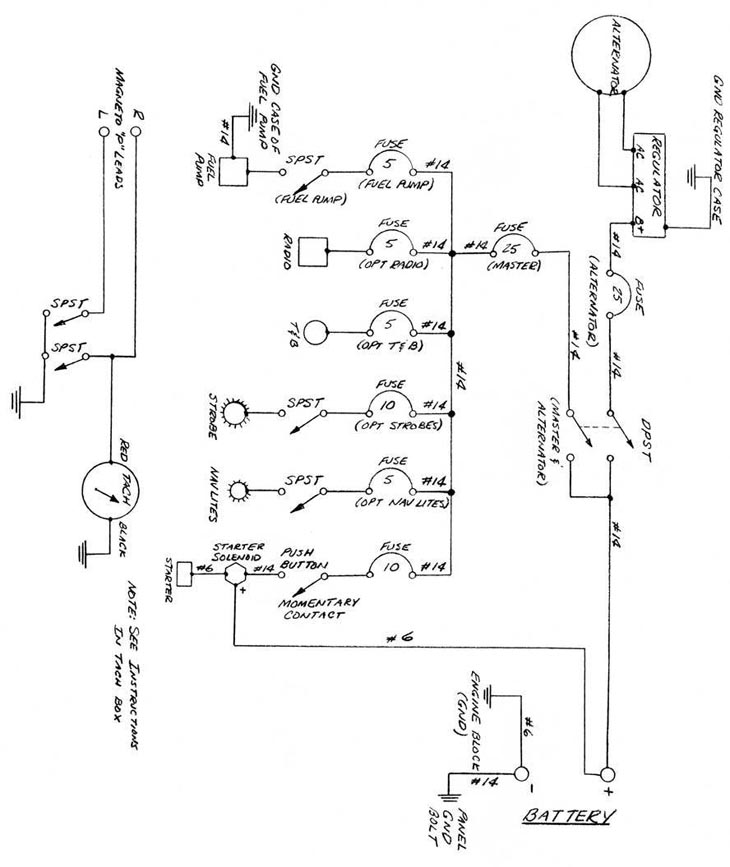

..... The schematic accompanying this chapter details the necessary wiring for the standard Q2 kit. Additional information is provided for wiring the more popular optional equipment items. A separate schematic details hooking up the magneto switches and tachometer. .....The panel ground bolt is simply a AN3-7A bolt located on the instrument panel that is used to connect all items that must be grounded. .....The fuses, fuse holders, wire (#14 and #6), connectors, and switches for the standard Q2 kit are included. Optional equipment will require additional components. The battery recommended with an electric starter is a 12 v, 18 AH battery. .....It is advisable to wait until a weight and balance has been performed (see the Q2 Pilot's Manual) prior to locating the battery, in order to use it as ballast to achieve the desired center of gravity range. In lieu of that, it should be located in the bagga_e compartment at about FS80. |
||||
|
||||
PAGE
19-1 |
||||
